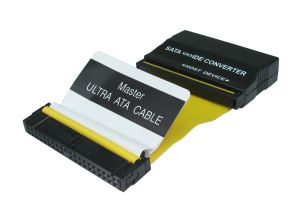

Bi-directional SATA to IDE Adapter

Product details

The NL-SATADUALADAPT is a bi-directional converter for serial and Parallel ATA translation. The Serial ATA physical, link, and transport layers are compliant to serial ATA 1.0. The NL-SATADUALADAPT converter supports a 1.5GHz data rate. The application layer supports both the ATA register command set and packet command set, which could drive both hard disk drive and ATAPI optical storage such as CR-ROM, CD-RW, DVD-ROM, DVD-RW, etc. The Serial ATA and the Parallel ATA application layer support both host and device operation.

Easy to install and setup, simply connect devices and slide switch to correct position. The switch works by selecting which mode the IDE connector is to be used. If converting a SATA device to IDE choose HOST and when converting IDE device to SATA select DEVICE.

Specification

• Serial ATA 1.0 specification 1.5Gbps
• ATA/ATAPI PIO mode 0 – 4
• ATA/ATAPI Ultra DMA 16.7, 25, 33, 48, 66, 100, 133 & 150Mb/s
• Supports Serial ATA hot-plug
• Low power consumption
• Supports AC and DC
